API Documentation

v1.0

REST API

Project Blue API

Send iMessages and SMS directly from your application. Integrate messaging into your CRM, workflows, or custom tools with a single API call.

Base URL

https://api.tryprojectblue.com

Authentication

All API requests require a Bearer token in the Authorization header. You can generate API keys from within your Project Blue dashboard under Settings → API Keys.

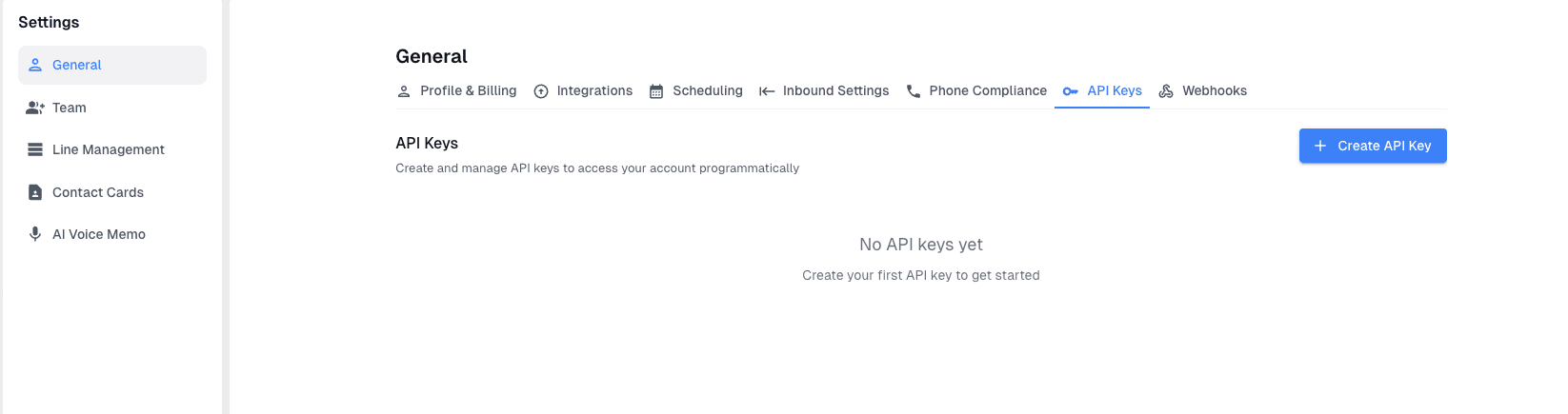

API Keys settings in the Project Blue dashboard

HTTP Header

Authorization: Bearer YOUR_API_KEY

Keep your API keys secure

Never expose your API key in client-side code or public repositories. Always make API calls from your server.

Send Message

POST

/send-api-message

Send a message to a phone number via iMessage or SMS. If the recipient has iMessage, the message is delivered as an iMessage (blue bubble). Otherwise, it falls back to SMS automatically.

Request Body

Parameter	Type	Required	Description
`message`	string	Required	The text content of the message to send.
`phone`	string	Required	Recipient phone number. Accepts many formats — we normalize to E.164 (e.g. +15551234567).
`lineId`	string (UUID v4)	Optional	Optional sender line override. Use the lineId value returned from GET /get-lines. When omitted, messages are load balanced across available lines.
`mediaAttachmentUrl`	string	Optional	URL to an image, video, or contact card attachment.
`audioAttachmentUrl`	string	Optional	URL to an audio file sent as a voice memo.
`enableAiVoiceMemo`	boolean	Optional	When true, generates an AI voice memo from the message text using text-to-speech.
`shouldAutoCreateContact`	boolean	Optional	Defaults to true. When enabled and a supported CRM is connected (HighLevel or HubSpot), automatically creates the contact in your CRM if they don't already exist.

The phone parameter is flexible — we accept formats like (555) 123-4567, 555.123.4567, +15551234567, and more. All numbers are normalized to E.164 format before sending.

When lineId is provided, we route through that line. If it is omitted, message sends continue to use default load balancing across your available lines.

Example Request

cURL

curl -X POST https://api.tryprojectblue.com/send-api-message \
  -H "Authorization: Bearer YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "message": "Hey! Just following up on our conversation.",
    "phone": "+15551234567"
  }'

Example with Media Attachment

cURL

curl -X POST https://api.tryprojectblue.com/send-api-message \
  -H "Authorization: Bearer YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "message": "Check out this property!",
    "phone": "+15551234567",
    "mediaAttachmentUrl": "https://example.com/property-photo.jpg"
  }'

Example with AI Voice Memo

cURL

curl -X POST https://api.tryprojectblue.com/send-api-message \
  -H "Authorization: Bearer YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "message": "Hey, wanted to quickly touch base about your appointment tomorrow.",
    "phone": "+15551234567",
    "enableAiVoiceMemo": true
  }'

Example with Line Override

cURL

curl -X POST https://api.tryprojectblue.com/send-api-message \
  -H "Authorization: Bearer YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "message": "Hi from a specific line.",
    "phone": "+15551234567",
    "lineId": "a3f8c2d1-b4e9-4f2a-c8d3-e1f0a2b3c4d5"
  }'

Success Response

JSON — 200 OK

{
  "success": true,
  "message": "Message added to queue",
  "messageType": "iMessage",
  "phone": "+15551234567",
  "devicePhoneNumber": "+15559876543",
  "mediaAttachmentUrl": null,
  "audioAttachmentUrl": null
}

Error Response (Invalid Line Override)

JSON — 400 Bad Request

{
  "error": "Invalid lineId. Expected a UUID v4 token returned from GET /get-lines."
}

CRM Integration

The Send Message endpoint works hand-in-hand with your CRM. If you have HighLevel or HubSpot connected, outbound messages sent through the API will automatically appear inside your CRM — just like messages sent from the Project Blue app.

Auto-Create Contacts

By default, shouldAutoCreateContact is true. This means if you send an outbound message and the recipient does not already exist as a contact in your CRM, we will automatically create the contact for you along with the message.

Set shouldAutoCreateContact to false if you only want messages logged for contacts that already exist in your CRM.

This field is only relevant if you have a supported CRM connected

If no CRM is connected, shouldAutoCreateContact has no effect. Messages are still sent normally regardless of this setting.

HighLevel

Outbound messages are synced directly into Conversations. If the contact doesn't exist and auto-create is enabled, we create the contact and the message appears in their conversation thread.

HubSpot

Outbound messages are logged as an activity on the contact record. If you have a HubSpot Inbox enabled, the message is also delivered there for your team to see and reply from.

If the contact doesn't exist and auto-create is enabled, we create the contact in HubSpot first, then log the activity.

cURL

curl -X POST https://api.tryprojectblue.com/send-api-message \
  -H "Authorization: Bearer YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "message": "Hey! Following up on our call earlier.",
    "phone": "+15551234567",
    "shouldAutoCreateContact": false
  }'

In the example above, the message will only be logged in your CRM if the contact already exists. No new contact will be created.

Check iMessage Availability

POST

/api-check-imessage-availability

Check whether a phone number is reachable via iMessage before sending. Useful for routing logic or pre-qualifying contacts.

Request Body

Parameter	Type	Required	Description
`phone`	string	Required	The phone number to check. Accepts many formats — we normalize to E.164.

Example Request

cURL

curl -X POST https://api.tryprojectblue.com/api-check-imessage-availability \
  -H "Authorization: Bearer YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "phone": "+15551234567"
  }'

Success Response

JSON — 200 OK

{
  "normalizedPhone": "+15551234567",
  "isIMessageAvailable": true
}

Error Responses

JSON — 400 Bad Request

{
  "error": "Invalid phone number format (Not a valid phone number). Please use format +12345678901"
}

200

Phone checked successfully

400

Invalid phone number format

401

Missing or invalid API key

429

Rate limit exceeded

500

Internal server error

Get Lines

GET

/get-lines

Fetch all sending lines available to your account. Pass the returned lineId value to /send-api-message when you want to force a specific line.

Example Request

cURL

curl -X GET https://api.tryprojectblue.com/get-lines \
  -H "Authorization: Bearer YOUR_API_KEY"

Success Response

JSON — 200 OK

[
  {
    "lineId": "a3f8c2d1-b4e9-4f2a-c8d3-e1f0a2b3c4d5",
    "devicePhoneNumber": "+15559876543",
    "customName": "Main Line"
  },
  {
    "lineId": "9c2e4a1b-d3f8-4e1c-a2b4-c5d6e7f8a9b0",
    "devicePhoneNumber": "+15557654321",
    "customName": "Secondary Line"
  }
]

Error Response

JSON — 401 Unauthorized

{
  "error": "Missing or invalid Authorization header"
}

List Messages

GET

/get-messages-api

Returns a paginated list of the authenticated user's messages — outbound and inbound merged into a single feed. Each message includes a durable message_handle that can be passed to /get-message-api/:message_handle for the full record.

Query Parameters

Parameter	Type	Required	Description
`limit`	integer (1–100)	Optional	Maximum number of messages to return. Defaults to 100.
`offset`	integer (≥ 0)	Optional	Pagination offset. Defaults to 0.
`order_by`	"createdAt" \| "sentAt"	Optional	Sort field. Defaults to createdAt.
`order_direction`	"asc" \| "desc"	Optional	Sort direction. Defaults to desc (newest first).
`service`	"iMessage" \| "SMS" \| "RCS"	Optional	Filter by delivery service. Note: RCS is inbound-only — combining service=RCS with direction=outbound returns zero results.
`direction`	"inbound" \| "outbound"	Optional	Filter to inbound or outbound only. Omit for both.
`pb_line_id`	string	Optional	Encoded Project Blue line id (from GET /get-lines). The only supported way to filter by one of your own PB lines — do not use from_number/to_number for that.
`from_number`	string (E.164)	Optional	External sender. Inbound-only filter. Combining with direction=outbound returns 400.
`to_number`	string (E.164)	Optional	External recipient. Outbound-only filter. Combining with direction=inbound returns 400.
`created_at_gte`	string (ISO-8601)	Optional	Lower bound on created_at.
`created_at_lte`	string (ISO-8601)	Optional	Upper bound on created_at.
`sent_at_gte`	string (ISO-8601)	Optional	Lower bound on sent_at.
`sent_at_lte`	string (ISO-8601)	Optional	Upper bound on sent_at.

Example Request

cURL

curl -G https://api.tryprojectblue.com/get-messages-api \
  -H "Authorization: Bearer YOUR_API_KEY" \
  --data-urlencode "limit=5" \
  --data-urlencode "direction=outbound" \
  --data-urlencode "service=SMS"

Success Response

JSON — 200 OK

{
  "status": "OK",
  "data": [
    {
      "message_handle": "pbm_outk6dawyUgbl-EjXCZk-g5mZnmwmSbilbaX-fvceChASMVXv1v26ONS0XENe2ggdJ82j9TMpw",
      "content": "Hello this is a message from desktop Claude!",
      "from_number": "+14804328406",
      "to_number": "+14808405291",
      "line_id": "7fd53c9a-5e6f-40e7-48c2-57663bad6c9c",
      "service": "SMS",
      "direction": "outbound",
      "status": "delivered",
      "created_at": "2026-04-19T07:30:14.525Z",
      "sent_at": "2026-04-19T16:00:31.091Z",
      "media_attachment_url": null,
      "voice_attachment_url": null
    }
  ],
  "pagination": { "limit": 100, "offset": 0, "total": 427 }
}

About message_handle

The message_handle is an opaque, user-scoped identifier. Don't try to parse or decode it — just hand it back to /get-message-api to look up that specific message.

Error Response

JSON — 400 Bad Request

{
  "error": "direction=inbound cannot be combined with to_number"
}

Get Message

GET

/get-message-api/:message_handle

Fetch a single message by its opaque message_handle (as returned from /get-messages-api). Handles are scoped to the authenticated user — a handle from another user's account returns 404.

Path Parameters

Parameter	Type	Required	Description
`message_handle`	string	Required	Opaque handle starting with pbm_, returned by /get-messages-api.

Example Request

cURL

curl https://api.tryprojectblue.com/get-message-api/pbm_outk6dawyUgbl-EjXCZk-g5mZnmwmSbilbaX \
  -H "Authorization: Bearer YOUR_API_KEY"

Success Response

JSON — 200 OK

{
  "status": "OK",
  "data": {
    "message_handle": "pbm_outk6dawyUgbl-EjXCZk-g5mZnmwmSbilbaX",
    "content": "Hello this is a message from desktop Claude!",
    "from_number": "+14804328406",
    "to_number": "+14808405291",
    "line_id": "7fd53c9a-5e6f-40e7-48c2-57663bad6c9c",
    "service": "SMS",
    "direction": "outbound",
    "status": "delivered",
    "created_at": "2026-04-19T07:30:14.525Z",
    "sent_at": "2026-04-19T16:00:31.091Z",
    "media_attachment_url": null,
    "voice_attachment_url": null
  }
}

Error Responses

JSON — 404 Not Found

{
  "error": "Message not found"
}

JSON — 400 Bad Request

{
  "error": "Invalid or missing message_handle"
}

Call Logs

GET

/get-call-logs-api

Returns the authenticated user's outbound call logs from the Project Blue dialer, including a recording_url when a recording is available. This is the call-log analog of /get-messages-api.

Outbound dialer calls only

This endpoint returns outbound calls placed from the Project Blue dialer.

recording_url can be null — that's expected

This endpoint reports call attempts, not just recorded calls — so unanswered, busy, failed, and very short calls all show up with recording_url: null. Answered calls typically populate recording_url within seconds of ended_at.

If a long-completed call still has recording_url: null, it usually means no audio was captured for that call (e.g. recording disabled on the line).

Query Parameters

Parameter	Type	Required	Description
`limit`	integer (1–100)	Optional	Maximum number of call logs to return. Defaults to 100.
`offset`	integer (≥ 0)	Optional	Pagination offset. Defaults to 0.
`call_log_timestamp`	"asc" \| "desc"	Optional	Sort direction by the call log's created_at, so unanswered attempts interleave with answered calls. Defaults to desc (newest first).
`pb_line_id`	string (UUID)	Optional	Encoded Project Blue line id (from GET /get-lines). Returns 400 if the line does not belong to the API key's user.
`answered_at_gte`	string (ISO-8601)	Optional	Inclusive lower bound on answered_at. Note: only matches calls that were actually answered.
`answered_at_lte`	string (ISO-8601)	Optional	Inclusive upper bound on answered_at. Note: only matches calls that were actually answered.

Example Request

cURL

curl -G https://api.tryprojectblue.com/get-call-logs-api \
  -H "Authorization: Bearer YOUR_API_KEY" \
  --data-urlencode "pb_line_id=6121307b-c29e-41d5-426b-46b679ab8648" \
  --data-urlencode "answered_at_gte=2026-04-01T00:00:00Z" \
  --data-urlencode "answered_at_lte=2026-05-01T00:00:00Z" \
  --data-urlencode "call_log_timestamp=asc" \
  --data-urlencode "limit=50"

Success Response

JSON — 200 OK

{
  "status": "OK",
  "data": [
    {
      "id": "cmorpmiw5fyb513ynkuz8jr39",
      "line_id": "6121307b-c29e-41d5-426b-46b679ab8648",
      "from_number": "+16027184932",
      "to_number": "+18016966474",
      "status": "completed",
      "disposition": "answered",
      "transcript": "Speaker A: Hey Colton, how are you?\nSpeaker B: This is Camila from Project Blue…",
      "duration_seconds": 168,
      "answered_at": "2026-05-04T21:24:06.882Z",
      "ended_at": "2026-05-04T21:26:53.882Z",
      "recording_url": "https://<storage-host>/call-recordings/<...>.mp3"
    },
    {
      "id": "cmorbzz12abcd13ynxxxxxxxx",
      "line_id": "6121307b-c29e-41d5-426b-46b679ab8648",
      "from_number": "+16027184932",
      "to_number": "+18015550199",
      "status": "no-answer",
      "disposition": "no-answer",
      "transcript": null,
      "duration_seconds": null,
      "answered_at": null,
      "ended_at": "2026-05-04T20:11:08.000Z",
      "recording_url": null
    }
  ],
  "pagination": { "limit": 100, "offset": 0, "total": 910 }
}

CallLog Object

Parameter	Type	Required	Description
`id`	string	Required	Internal call log id (stable, useful for dedupe).
`line_id`	string \| null	Required	UUID-encoded PB line id. Round-trips with the pb_line_id filter.
`from_number`	string	Required	E.164 sender (your line).
`to_number`	string	Required	E.164 recipient.
`status`	string	Required	Call status (completed, no-answer, busy, failed, canceled, …).
`disposition`	string \| null	Required	AI-assigned disposition derived from the call transcript. See the Dispositions table below for all possible values.
`transcript`	string \| null	Required	Speaker-labelled transcript when one was generated.
`duration_seconds`	number \| null	Required	Connected duration. null for calls that never connected.
`answered_at`	string (ISO-8601) \| null	Required	When the call was answered.
`ended_at`	string (ISO-8601) \| null	Required	When the call ended.
`recording_url`	string \| null	Required	URL to the call recording when one is available; null otherwise.

Dispositions

After a recording is transcribed, the transcript is run through an AI classifier that assigns one of the following dispositions. Use this for routing, follow-up automation, or analytics. The disposition can be null on calls that haven't been classified yet.

answered

A human answered and spoke (any clear human speech that isn't a voicemail greeting).

voicemail

The call went to voicemail (voicemail greeting, beep, or 'leave a message' prompt detected).

busy

The line was busy.

no_answer

No one answered — just ringing or silence.

wrong_number

The person on the other end indicated this is the wrong number.

not_interested

The person explicitly declined or showed no interest.

callback_requested

The person asked to be called back at a later time.

meeting_scheduled

A meeting or appointment was scheduled on the call.

information_provided

Information was exchanged but no clear next step was set.

no_speech

The transcript was empty (no speech to classify).

unknown

Truly cannot determine from the transcript. Used sparingly.

Pagination

bash

# page 1
curl ".../get-call-logs-api?limit=100&offset=0"

# page 2
curl ".../get-call-logs-api?limit=100&offset=100"

# stop when data.length < limit, or offset >= pagination.total

Filtering Examples

Last 24 hours of outbound calls for one line:

bash

GTE=$(date -u -v-24H +"%Y-%m-%dT%H:%M:%SZ")  # macOS
curl -sS \
  -H "Authorization: Bearer $PB_API_KEY" \
  "https://api.tryprojectblue.com/get-call-logs-api?pb_line_id=$LINE_ID&answered_at_gte=$GTE"

The endpoint doesn't filter by disposition. Filter on the client:

bash

curl -sS -H "Authorization: Bearer $PB_API_KEY" \
  "https://api.tryprojectblue.com/get-call-logs-api?limit=100" \
  | jq '.data | map(select(.disposition == "answered"))'

Error Responses

JSON — 400 Bad Request

{
  "error": "Invalid or unavailable pb_line_id for this API key user."
}

JSON — 400 Bad Request

{
  "error": "answered_at_gte is not a valid ISO-8601 date"
}

200

Call logs returned

400

Invalid query parameter (limit/offset/call_log_timestamp/dates/pb_line_id)

401

Missing or invalid API key

429

Rate limit exceeded

500

Internal server error

Supported Media Types

Use the mediaAttachmentUrl field to send rich media with your messages. The following formats are supported:

Images

JPEG / JPG

PNG

GIF

WebP

Videos

MP4

MOV

AVI

MKV

FLV

WebM

Contact Cards

VCF / vCard

Voice Memos & Audio

Use audioAttachmentUrl to send audio files as voice memos. The following formats are supported:

M4A

MP3

WAV

OGG

WebM

CAF

AI Voice Memos

Set enableAiVoiceMemo to true and include a message to generate a natural-sounding voice memo via text-to-speech. No audio file needed — we generate it for you.

Calling

Voice calling is not provided by the Project Blue API. Outbound and inbound calls are handled by Twilio. We give you a Twilio API key in the webapp so you can build calling yourself.

Your Twilio API key is already created for you. You don't add phone numbers or caller ID — our team provides those.

Getting your Twilio API key

You must be on an API or Zapier based account.

In the Project Blue portal, go to Settings → API Keys. Your Twilio API key is exposed there.

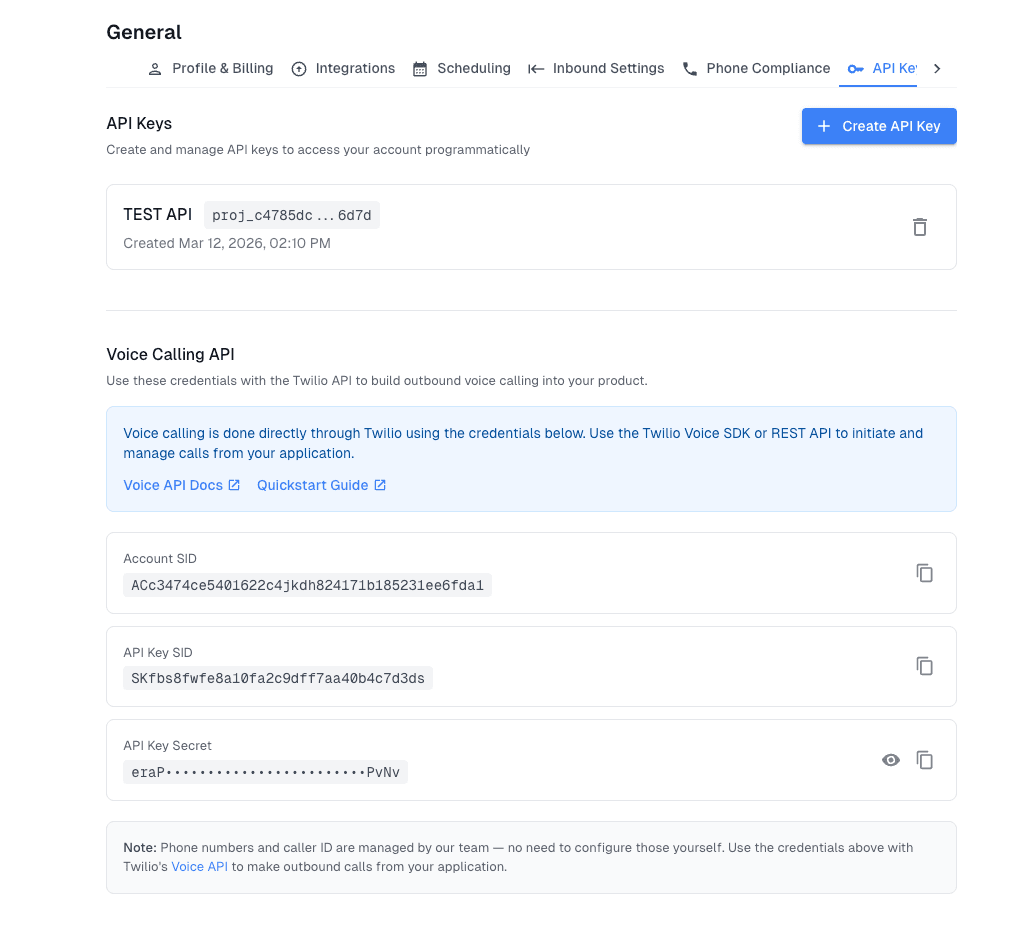

Twilio API key in Project Blue Settings → API Keys

Use Twilio's Voice API documentation to implement outbound and inbound calls.

SMS, iMessage, and MMS stay on the Project Blue API. Only voice calling uses your Twilio key and Twilio's API.

Model Context Protocol (MCP)

The Project Blue MCP server lets AI assistants (Claude Desktop, Claude Code, Cursor, and any other MCP-compatible client) send iMessages/SMS, look up iMessage availability, and read the user's message history — directly from the editor or chat surface.

Server URL

https://api.tryprojectblue.com/api/mcp

Quick Start

Paste the MCP server URL into your client's connector settings. Authentication is handled via OAuth 2.1 — your client will open a browser window to app.tryprojectblue.com where you log in and approve the connection. No API key to paste, no tokens to manage.

Setup by Client

Claude Desktop

Open Settings → Connectors → Add custom connector, give it a name (e.g. Project Blue), and paste the server URL. Leave the Advanced / OAuth fields blank — they'll be populated automatically through dynamic client registration. Click Connect and sign in when the consent screen appears.

MCP Server URL

https://api.tryprojectblue.com/api/mcp

Claude Code

Terminal

claude mcp add project-blue \
  --transport http \
  https://api.tryprojectblue.com/api/mcp

Claude Code will open a browser to complete the OAuth flow on first use.

Cursor

Add to ~/.cursor/mcp.json (global) or .cursor/mcp.json (per-project):

JSON — .cursor/mcp.json

{
  "mcpServers": {
    "project-blue": {
      "url": "https://api.tryprojectblue.com/api/mcp"
    }
  }
}

Other MCP Clients

Any client that supports remote MCP over streamable HTTP will work out of the box. For clients that only accept stdio servers, use mcp-remote as an adapter:

JSON — mcp-remote fallback

{
  "mcpServers": {
    "project-blue": {
      "command": "npx",
      "args": ["-y", "mcp-remote", "https://api.tryprojectblue.com/api/mcp"]
    }
  }
}

Available Tools

Tool

Type

Description

send_message

write

Send an iMessage or SMS to a single recipient. Supports media, audio, AI voice memo, and an optional lineId override.

lookup_imessage_availability

read

Check whether a phone number supports iMessage.

get_lines

read

List the user's Project Blue sending lines (lineId, devicePhoneNumber, customName).

list_messages

read

List recent inbound/outbound messages with filters (service, direction, line, date ranges).

get_message

read

Fetch a single message by its opaque message_handle.

get_call_logs

read

List the user's outbound dialer call logs with filters for line and answered_at range. Includes call status, disposition, transcript, and recording URL when available.

Authentication

The MCP server is protected by OAuth 2.1 with Dynamic Client Registration and PKCE. The full flow looks like this:

Client calls the MCP URL without a token. Server responds 401 with a WWW-Authenticate header pointing at the protected-resource metadata.
Client discovers the authorization server (app.tryprojectblue.com), dynamically registers itself, and opens the consent page.
User signs in to Project Blue and clicks Allow. The authorization server mints a new scoped PB API key bound to this connection.
Client receives an access token (pbo_…) and uses it on every MCP request. The token maps back to the user and their scoped key on the server side.

Revoking an MCP connection

You can revoke an MCP connection at any time from Settings → Connected Apps in the Project Blue webapp. Revocation invalidates the token and the scoped API key tied to it — the AI client will be prompted to re-authorize on its next request.

Discovery Endpoints

These are emitted automatically for MCP clients that support discovery; you don't need to touch them yourself.

/.well-known/oauth-protected-resource

RFC 9728 — advertises the authorization server for this resource.

/.well-known/oauth-authorization-server

RFC 8414 — served by app.tryprojectblue.com. Lists OAuth endpoints and capabilities.

Webhooks

Webhooks let you receive real-time notifications when messages are sent or received. Configure webhooks from within the Project Blue dashboard alongside your API keys.

Configuration

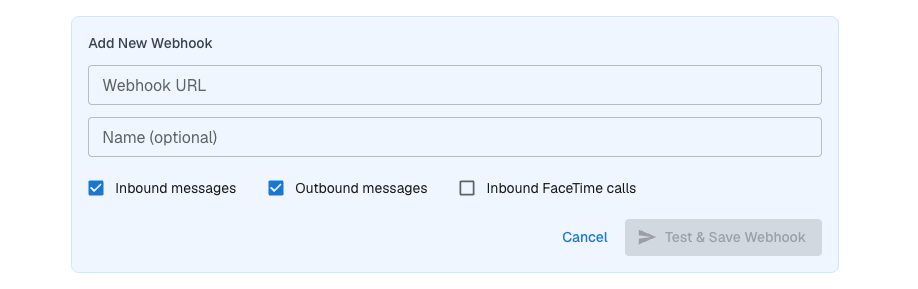

In the Project Blue app, you can:

Paste the webhook URL you want to receive events at
Toggle whether the webhook fires for outbound messages, inbound messages, or both
Send test payloads to verify your endpoint is working

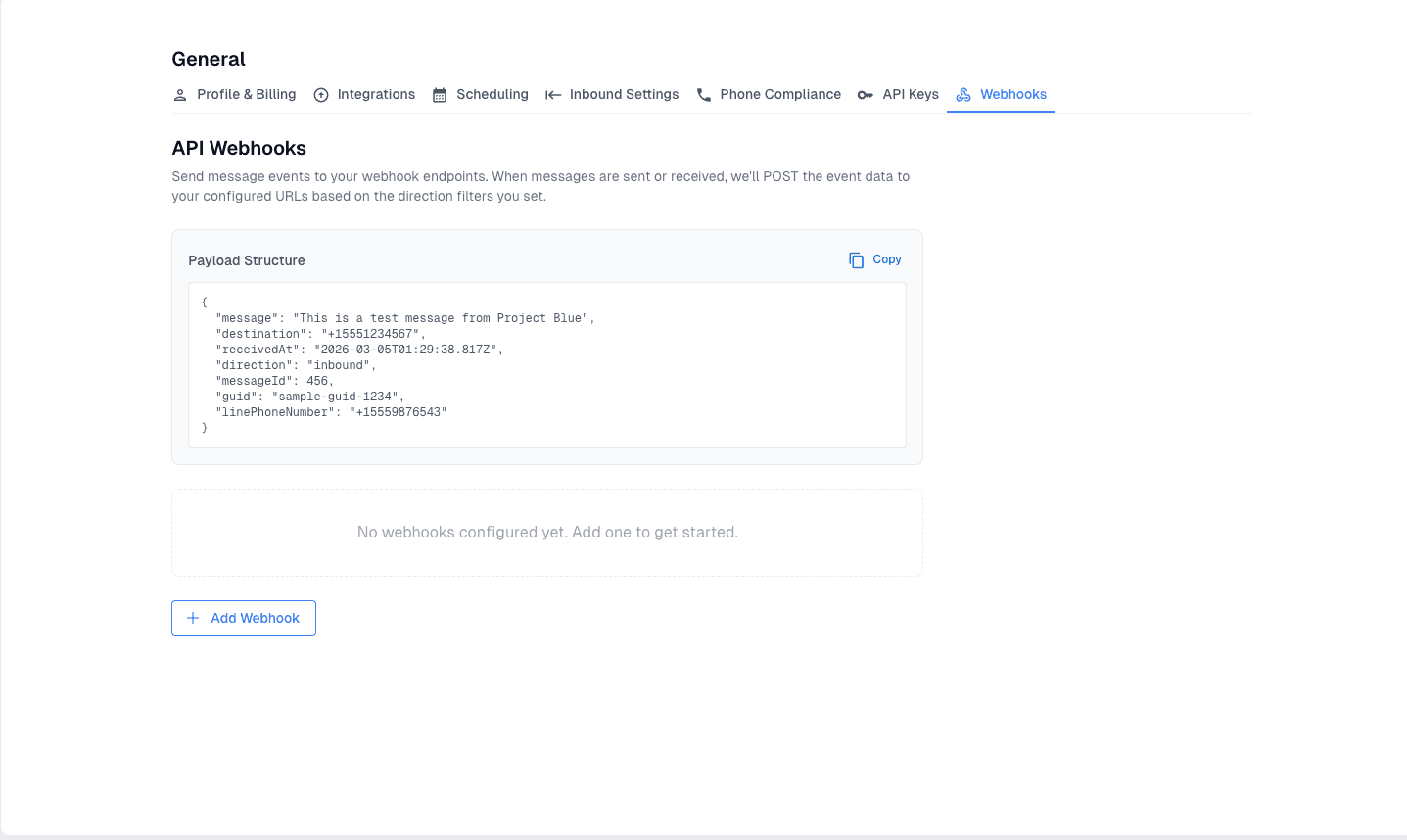

Webhook configuration in the Project Blue dashboard

Webhook Payload

Every webhook event delivers the same payload structure. The direction field indicates whether the message was inbound or outbound.

Parameter	Type	Required	Description
`message`	string	Required	The text content of the message.
`destination`	string	Required	The phone number the message was sent to, in E.164 format.
`receivedAt`	string	Required	ISO 8601 timestamp of when the message was received.
`direction`	string	Required	Either "inbound" or "outbound", based on message direction.
`messageId`	number	Required	Unique numeric identifier for the message.
`guid`	string	Required	Globally unique message identifier.
`linePhoneNumber`	string	Required	The Project Blue line phone number associated with this message.

Example — Inbound

JSON — Inbound Webhook

{
  "message": "Yes, I'm interested! When can we schedule?",
  "destination": "+15551234567",
  "receivedAt": "2026-03-04T18:30:00.000Z",
  "direction": "inbound",
  "messageId": 456,
  "guid": "sample-guid-1234",
  "linePhoneNumber": "+15559876543"
}

Example — Outbound

JSON — Outbound Webhook

{
  "message": "Great! Let's book you in for Thursday at 2pm.",
  "destination": "+15551234567",
  "receivedAt": "2026-03-04T18:31:00.000Z",
  "direction": "outbound",
  "messageId": 789,
  "guid": "sample-guid-5678",
  "linePhoneNumber": "+15559876543"
}

Error Handling

The API uses standard HTTP status codes. All error responses include a JSON body with an error field describing what went wrong.

JSON — 401 Unauthorized

{
  "error": "Missing or invalid Authorization header"
}

200

Message sent successfully

400

Invalid request body or missing required fields

401

Missing or invalid API key

429

Rate limit exceeded

500

Internal server error

Website Contact
